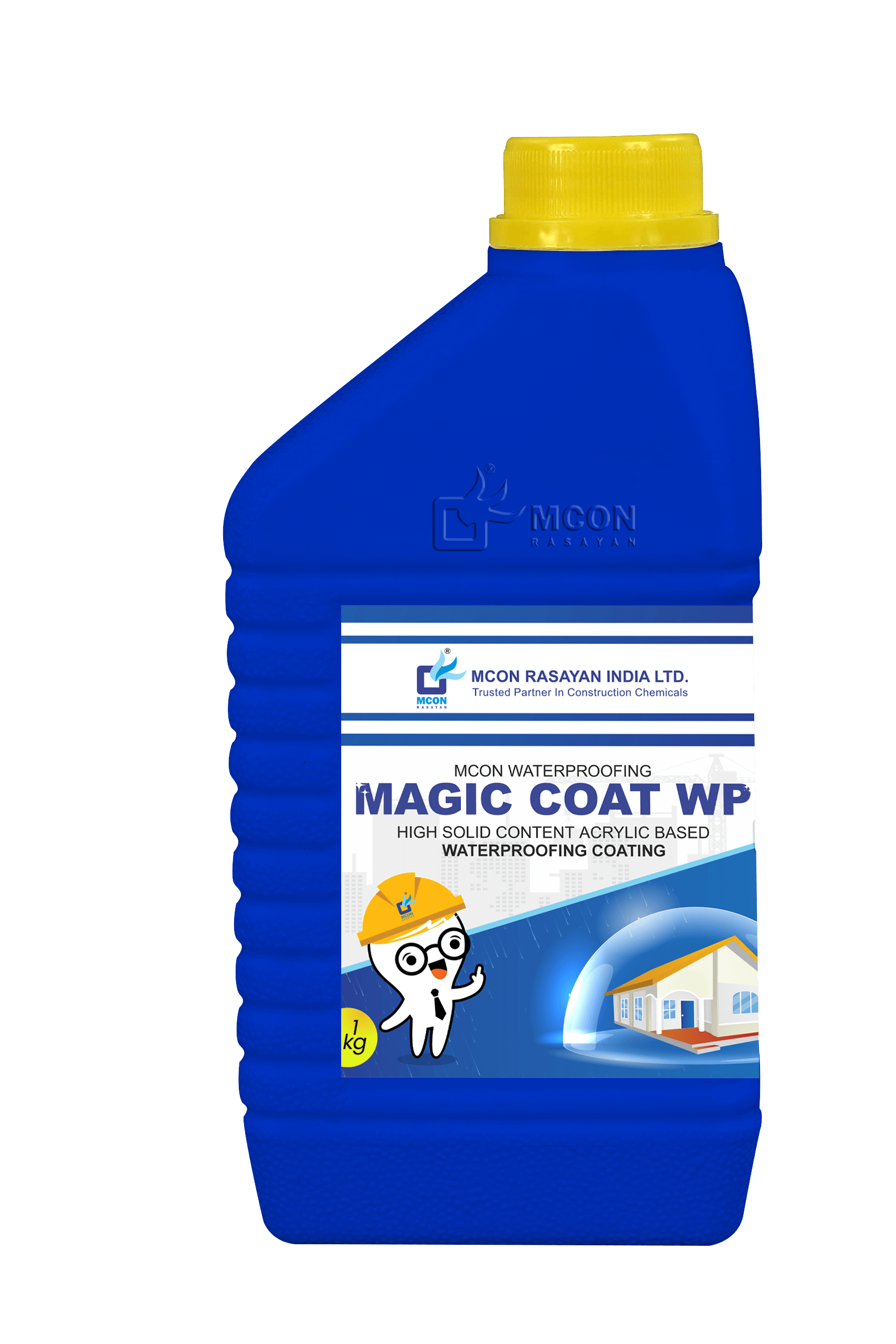

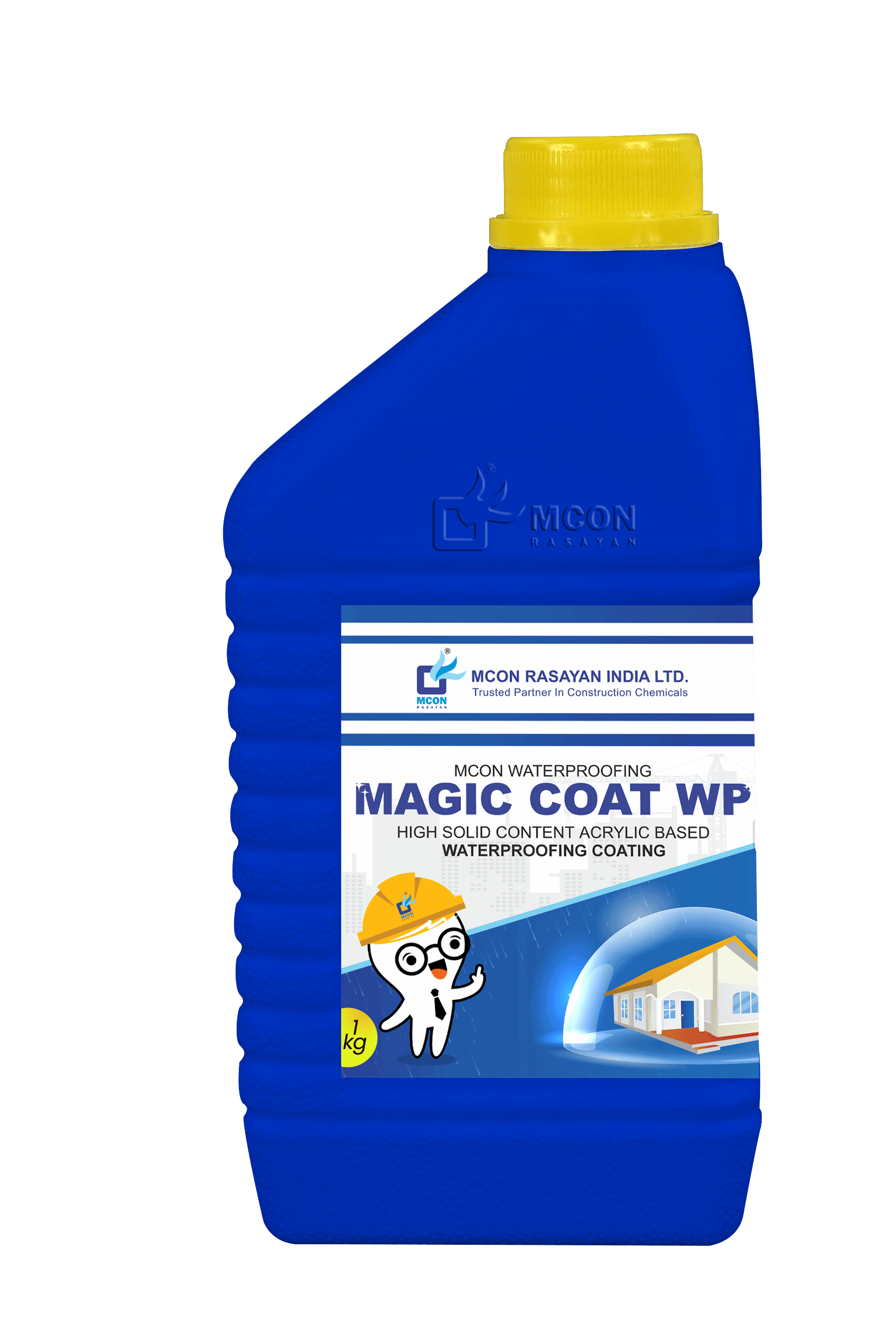

MCON Magic Coat WP

• Bonds strongly on cement concrete, cement plastered applied surfaces.
• Std Compliance: – Confirms to DIN 1048 standards of water permeability with zero permeability of concrete after two coats up to 15 bar water pressure.
• Protects against water penetration, salt & carbonation. Non-corrosive to steel & iron.
• Increase durability of Structures.
• Improves waterproofing properties when mixed with cement.
• Non-toxic when cured, suitable for contact with drinking water.

admin

50-60 Sq.ft./kg in Single coat (Depending on Surface)

Packing

1,5,20 & 50 Kgs HDPE Cans

admin

• Surface to be dry for application as the material is not cured in presence of moisture.
• Moisture level shall not be essentially more than 0.5%.
• Stir the Slurry thoroughly and carefully to achieve a homogeneous consistency before application.
• Avoid application on very hot substrate & during a very hot and windy conditions.
• Film formation may not be uniform and gradual under such circumstances & skinning on top surface may lead to formation of blisters and bubbles due to entrapped vapour from within the material.

admin

12 months in original packing if stored at room temperature i.e.25°C.

admin

Surface preparation

• Clean the surface with wire brush or scrubber to remove hidden dirt, loose particles, laitance & dust. Degrease the surface by using suitable solvents.
• Repair the spalled concrete portion by saw, cutting the extreme edges of the repair location to a depth of at least 10 mm to avoid featheredging & to provide strong bond.
• Clean the concrete surface to remove any contamination where breaking is not possible. Roughen the surface by light scrabbling or grit blasting.
• For priming of concrete substrate, the surface should be thoroughly saturated with potable water. Remove any excess of water prior to application

As a Waterproofing Coating

• For a waterproofing coating Mix MCON MAGIC COAT WP: Cement in the ratio 1:1 by volume
• Mix for 2-3 minutes to avoid air entrapment. Keep on slowly adding cement to MCON MAGIC COAT WP until the required consistency is achieved.
• Brush apply 2 coats of the mix in a span of 4-6 hours on the prepared concrete substrate Overlay the coating with a protective screed to the desired slope & thickness as a Bonding Primer.
• For a bonding primer mix MCON MAGIC COAT WP Cement in the ratio 1:1 by volume.
• Brush apply 1 continuous coat of the mix on the prepared concrete substrate.
• Ensure to overlay the repair mortar when the bond coat is still tacky.

As an additive for Repair Mortars & Renders

• A suitable mix ratio for patching repair mortar or render is as follows :
• Mix design – Portland Cement: 50 kg, Washed sand : 150 kg, MCON MAGIC COAT WP: 5 kg & Water : 15-20 Ltr

As an Additive for Floor Screeds & PCC

• A suitable mix ratio for patching repair mortar or render is as follows:
• Mix design – Portland Cement : 50 kg, Washed sand : 75kg, 6mm downsize aggregates : 75 kg, MCON MAGIC COAT WP: 5 kg & Water: 15-20 Ltr

As a coating for Reinforcing Steel priming

• Apply one coat of MCON MAGIC COAT WP mixed cement slurry (1:1 by volume) to all exposed steel reinforcement and allow it to dry.
• A second coat application is also recommended. Allow it to dry. The surface should be thoroughly soaked with clean water prior to application of MCON MAGIC COAT WP
• Apply MCON MAGIC COAT WP with brush or rollers on the substrate and avoid ponding and remove any excess material. The repair or topping application should be carried out whilst the primer is still tacky.

admin

• Terrace
• Garden
• Balconies Bathroom
• Lift Pits
