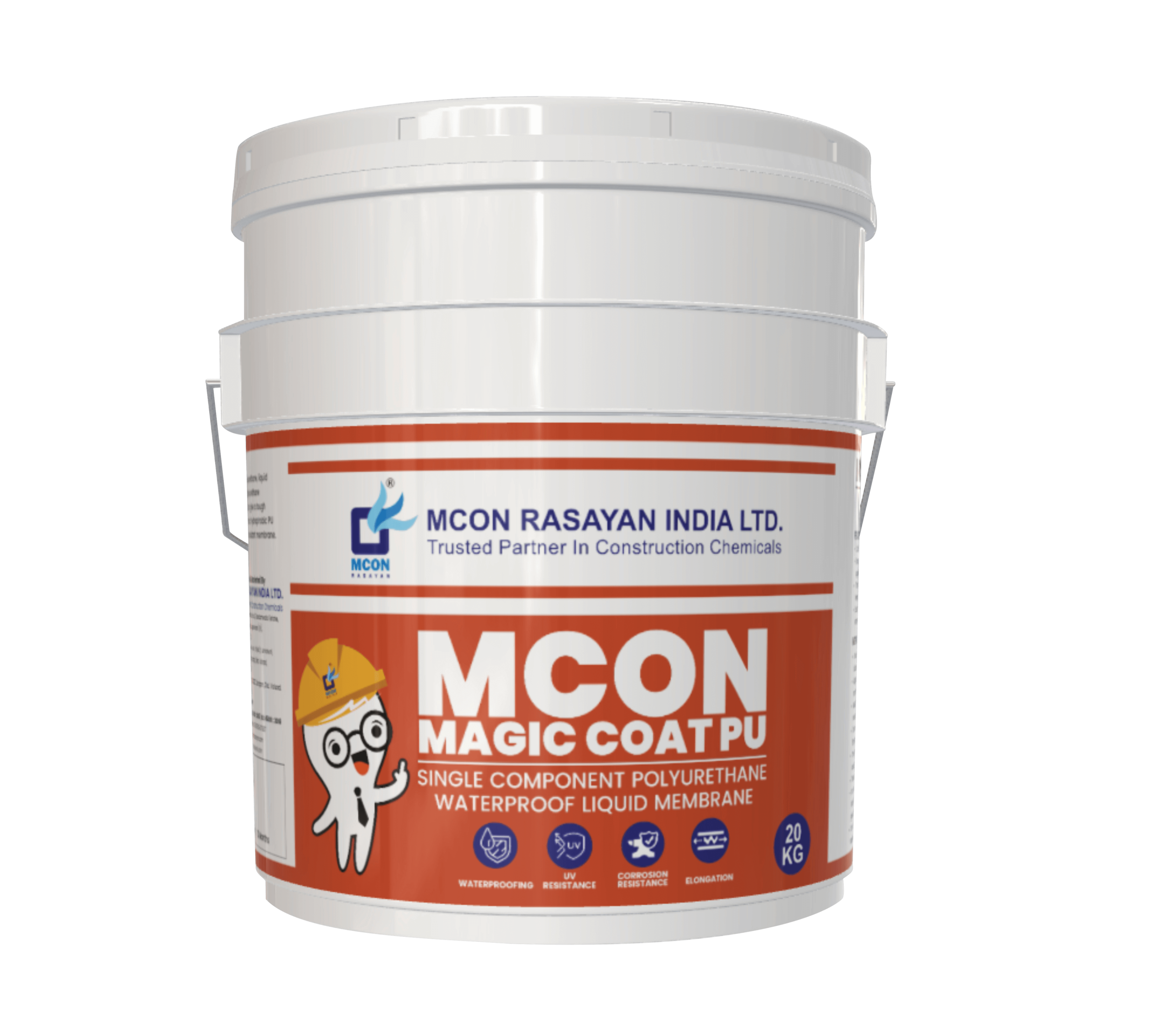

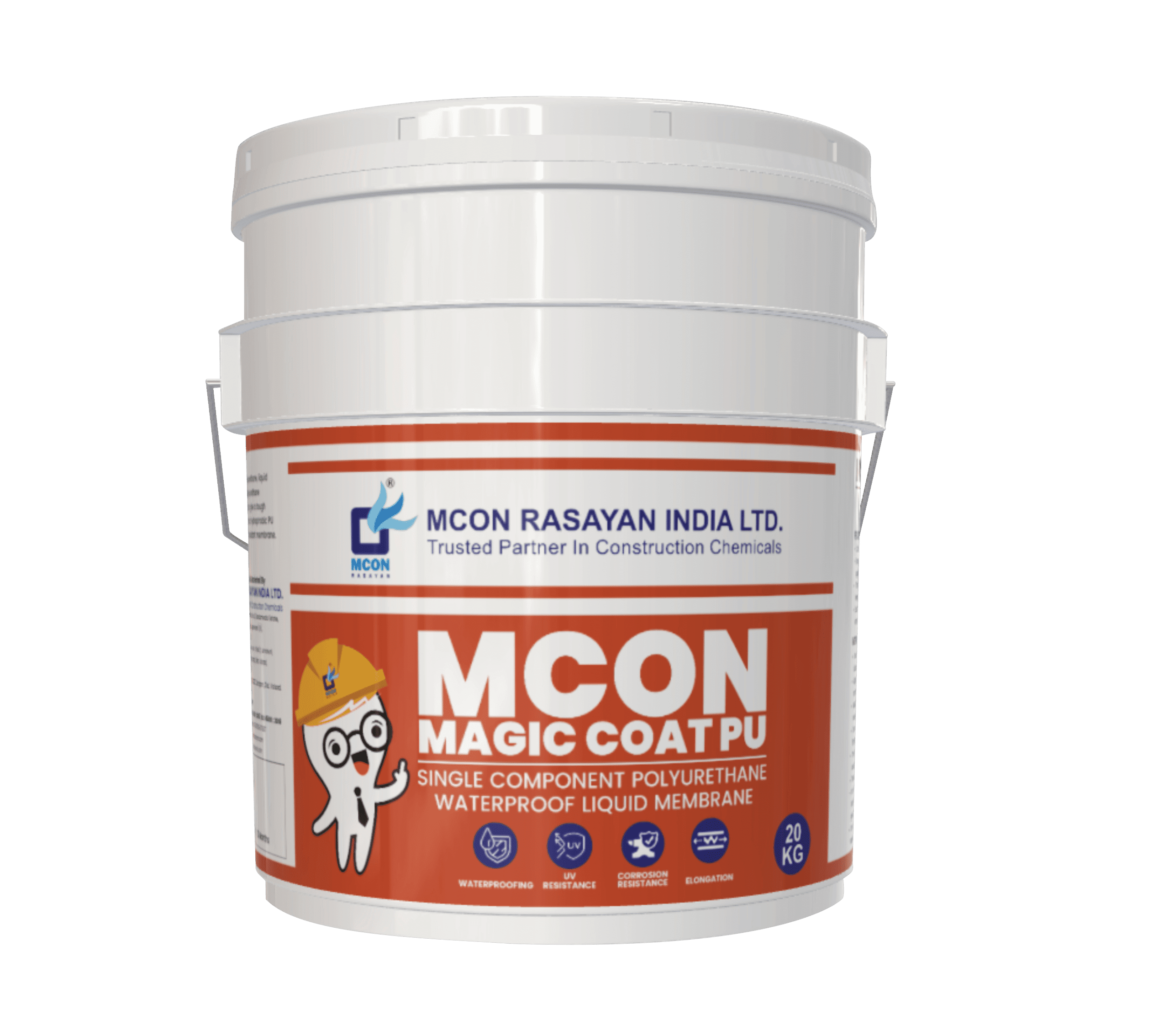

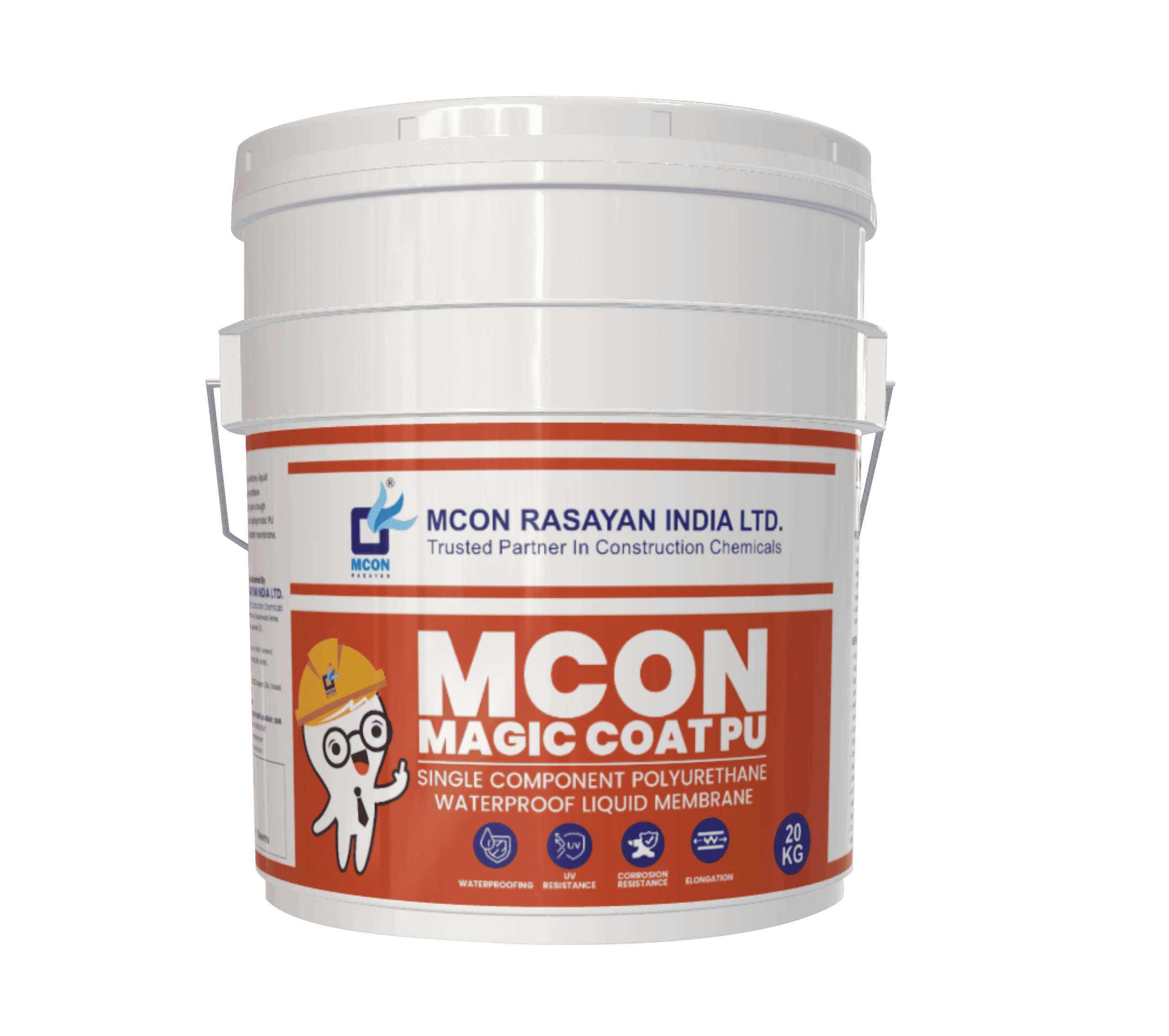

MCON Magic Coat PU

MCON MAGIC COAT PU is a single component, modified polyurethane, liquid applied coating that is composed of specially developed polyurethane compound, it cures by reaction with atmospheric moisture to give a tough elastomeric waterproof membrane. It is based on elastomeric hydrophobic PU resin which in combination with inorganic fillers from a UV resistant membrane.



  • Cold curing, cures to a tough, flexible and abrasion resistant coating.
  • Bonds strongly on cement concrete, asbestos, mild steel, cement plastered applied surfaces.
  • Thermal stability Irreversible chemical cure eliminates melting and flow at high temperature.
  • Excellent protection against corrosive soil conditions, resistance against saline water, mild acids and alkalies, high sulphate resistance.
3f5b1daea989532907a20e4d70b5a40d71419e45ba4a418d04f8ca70f24ec38b?s=100&d=mm&r=g

admin

20 sq. ft / kg / coat

1 – 1.25 kg/m² for 1.5mm wet film thickness

Packing

5 & 20 Kgs HDPE Buckets

3f5b1daea989532907a20e4d70b5a40d71419e45ba4a418d04f8ca70f24ec38b?s=100&d=mm&r=g

admin

  • Surface to be dry for application as the material is not cured in presence of moisture.

  • Moisture level shall not be essentially more than 0.5%.

  • Avoid application on very hot substrate & during a very hot and windy conditions.

  • Film formation may not be uniform and gradual under such circumstances & skinning on top surface may lead to formation of blisters and bubbles due to entrapped vapour from within the material.

Safety

  • Wear hand gloves, safety shoes and safety goggles while using and handling the product.
  • In case eyes or mouth are affected wash with plenty of clean water and seek medical treatment immediately.
3f5b1daea989532907a20e4d70b5a40d71419e45ba4a418d04f8ca70f24ec38b?s=100&d=mm&r=g

admin

6 months from the date of manufacturing when stored in un-opened, original sealed and dry condition at a temperature range from +5°C to 40°C.

Shelf Life

12 months in original packing if stored at room temperature i.e. 25°C.



3f5b1daea989532907a20e4d70b5a40d71419e45ba4a418d04f8ca70f24ec38b?s=100&d=mm&r=g

admin

Surface Preparation

  • All surfaces to be waterproofed should be sound, clean and dry and free of any laitance, grease and oil, dirt and other loose materials.

  • Algae and fungi must be removed physically. After treatment leave for 2–3 hrs and then wash down thoroughly with clean water and allow to dry completely.

Movement Joints

All expansion and movement joints should be primed and sealed with a suitable joint sealant e.g. MCON POLYSEAL G. When sealant is dry, MCON SEAL Tape should be applied over the joint. On primer coat of MAGICCOAT PRIMER should be applied to the substrate to a distance 150 mm either side of the tape, and allowed to dry. A 0.65–0.7 mm thick wet coat of MCON MAGICCOAT PU should be applied over the joint area, extending 150 mm beyond each side of the tape, and while wet, reinforced using MCON MAGIC NET and allowed to dry. A second 0.65–0.7 mm thick wet coat should then be applied.

Treatment of Cracks

All shrinkage and non-moving structural cracks should be pretreated with a minimum 1.3 mm thick wet coat of MCON MAGICCOAT PU, extending 75 mm either side of the crack.

Coving and Bends

All angles / bends must have a cant strip or coving detail installed. This may be formed using a sand / cement mix. One primer coat of MCON MAGICCOAT PU should be applied and allowed to dry, then a 0.65–0.7 mm thick wet coat applied, extending 150 mm either side of the coving, and while still wet, reinforced using MCON MAGIC NET and allowed to dry. A second 0.65–0.7 mm wet coat should be applied. All other angles, joints, protrusions and stress points should be pretreated with a 1.3 mm thick coat of MCON MAGICCOAT PU extending 100 mm either side of the detail. Reinforcement using MCON MAGIC NET is recommended where movement is possible, using the same technique as above. All pretreatment coats must be allowed to dry before the main application of MCON MAGIC COAT PU.

Pre-Application Mixing

MCON MAGIC COAT PU is a single component material. Stir using slow speed drill for 1–2 minutes to achieve a homogenous consistency prior to application. Avoid air entrapment whilst stirring, do not over-stir. Allow to settle for 1–2 minutes before use.

Priming

Priming is mandatory for porous and absorbent substrates such as concrete. Priming is recommended but not mandatory for prepared metal substrates. Use MCON MAGIC COAT PRIMER and apply primer and allow to wet/soak in to the substrate and dry to a tacky state before coating. Stir well before use to get a homogeneous consistency.

Application

  • MAGIC COAT PU should be applied by brush, trowel, airless spray in two coats maintaining the spreading rate to achieve the desired DFT of 1.0 mm.

  • The material consumption shall be approximately 1.0–1.25 kg/m² for 1.5 mm wet film thickness coats recommended.

  • The first coat has to be diluted with 10% water, mixing it thoroughly. Allow first coat to dry for 24 hours.

  • The second coat has to be applied perpendicular to the first coat with no dilution.

  • In critical applications where film thickness is paramount and desired than the stated one then two coats should be applied with quantities per coat gauged to give the specified final film thickness.

  • On a vertical surface if high film build up is desirable then additional coat may be required.

Curing and Protection

  • MCON MAGIC COAT PU coating must be completely dry (e.g up to 24 hours at 25°C) prior to the placement of any protection layer. The coating will get fully cured into membrane in 7 days. If a water ponding test is to be run, the membrane should be fully cured.

  • In order to protect MCON MAGIC COAT PU against any damage caused by e.g backfilling or traffic, it must be protected using either a cementitious screed or protection boards.

  • A separation sheet can be laid under the protection layer if necessary, to avoid any bonding to the membrane.

3f5b1daea989532907a20e4d70b5a40d71419e45ba4a418d04f8ca70f24ec38b?s=100&d=mm&r=g

admin

  • For exposed roof waterproofing applications in both new construction and refurbishment projects.
  • Serviced roofs, Flat or sloping roofs, Cool roofs, Refurbished roofs, Terraces, including corrugated roof.
  • Podium
  • Refurbishment of APP/SBS/TarFelt roof
  • Gutter waterproofing
